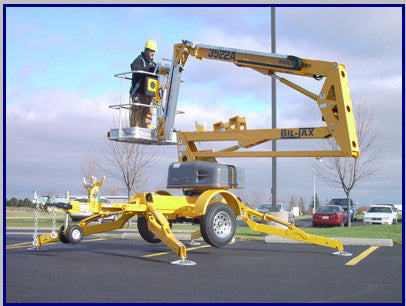

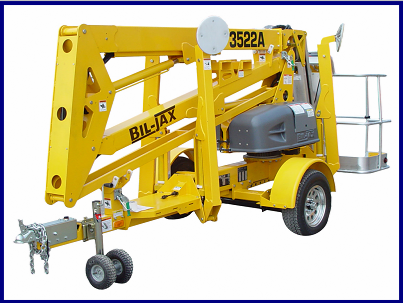

BOOMLIFT, 3522A TOWABLE (35FT)
Please Call for Pricing
Tongue weight (no options) 245 lbs
Weight (no options) 3400 lbs
Tongue weight (no options) 245 lbs
Weight (no options) 3400 lbs
Platform height 35 ft 9 in
Horizontal outreach (from center) 22 ft 6 in
Horizontal outreach (from edge of footpad) 17 ft 5 in
Up and over height 19 ft
Lift capacity 500 lbs
Length - stowed 16 ft 3 in
Width stowed 5 ft 6 in
Height stowed 6 ft 5 in
Platform size 4 ft x 2 ft 6 in
Outrigger footprint 11 ft 1 in x 9 ft 11 in
Turntable rotation 700° non-continuous
Jib - length 4 ft 3 in
Jib - Vertical Motion 150° (+70 / -80)
Tow speed rating 65 mph
Gradeability 12.5 %
Leveling capability 12.5 °
Tire size ST 225/75 D15
Power source 4 x 6 V 245 amp-hr
---------------------------------------------------------------
